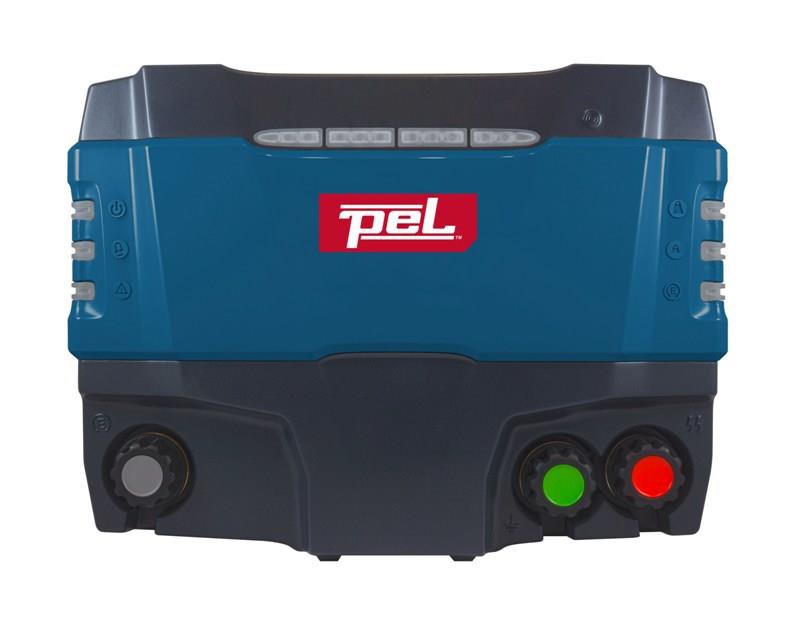

The PEL A15Xi provides the power previously attained from large energizer whilst complying with
the latest EN 60335 2 76 standard.
15 Joule Output Energy.
*7 Year Warranty – 5 Year Standard and extended to 7 by registering.
FEATURES AND BENEFITS
• Compatible with PEL Remote (Sold Separately)
• Earth monitor LED illuminates orange when the earth voltage is above 800 V.
• Earth monitor terminal should be connected in the same way as 415i. Earth rod for earth monitor needs to be 10m away from A15Xi’s
earth system.
• Notifies farmer when the earth system needs to be improved to allow for adequate shocks from the fence.
• Indicates when a medium or heavy load is seen on the fence.
• Medium load LED illuminates orange when the fence load is 100 Ω or less.
• Medium load and heavy load LEDs illuminate orange when the fence load is 50 Ω or less.
• Notifies farmer when the fence needs to be checked for high vegetation or shorts on the fence.
